VA.. Electronic speed-controller Single-phase motors only
Features
The VA range is an electronic type speed-controller which provides infinite variation of fan speed from 100% down to approximately 30% of full speed.
When used to control a number of identical fans the sum of the full load amps of all the connected fans must not exceed 85% of the maximum rating of the controller.
The fans should be identical.
Power consumption is reduced by up to 70%.
The motors must be designed for speed control.
Warning
Check with our Sales Department before using the VA controllers with EV fans, or with run-on timers.
Note
To minimise electronic hum from larger PSC (Permanent Split Capacitor) motors, a constant active is connected to the start winding via the capacitor and the run winding is regulated by the speed controller. (4 wire connection)
A PSC motor is sometimes referred to as a Capacitor Run motor.
| Model Number |
Maximum Amps mA |
Mounting |
Dimensions, mm |
| VA2.0POT** |
2.0 |
Bracket |
25W × 25H × 50D |
| VA2.0 |
2.0 |
Recess |
70W × 114H × 36D |
| VA2.8 |
2.8 |
Recess |
70W × 114H × 36D |
| VA5.0 |
5.0 |
Recess |
70W × 114H × 51D |
| VA8.0† |
8.0 |
Bracket |
114W x 74H x 63D |
| VA8.0-RC10† |
n/a |
Recess |
70W × 114H × 51D |

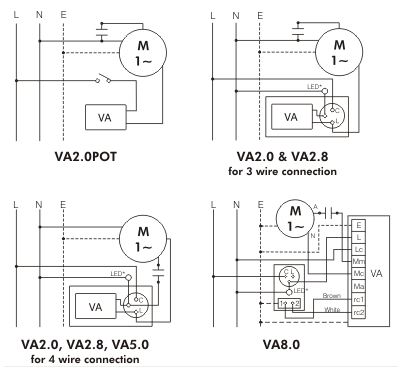

Wiring Diagram
